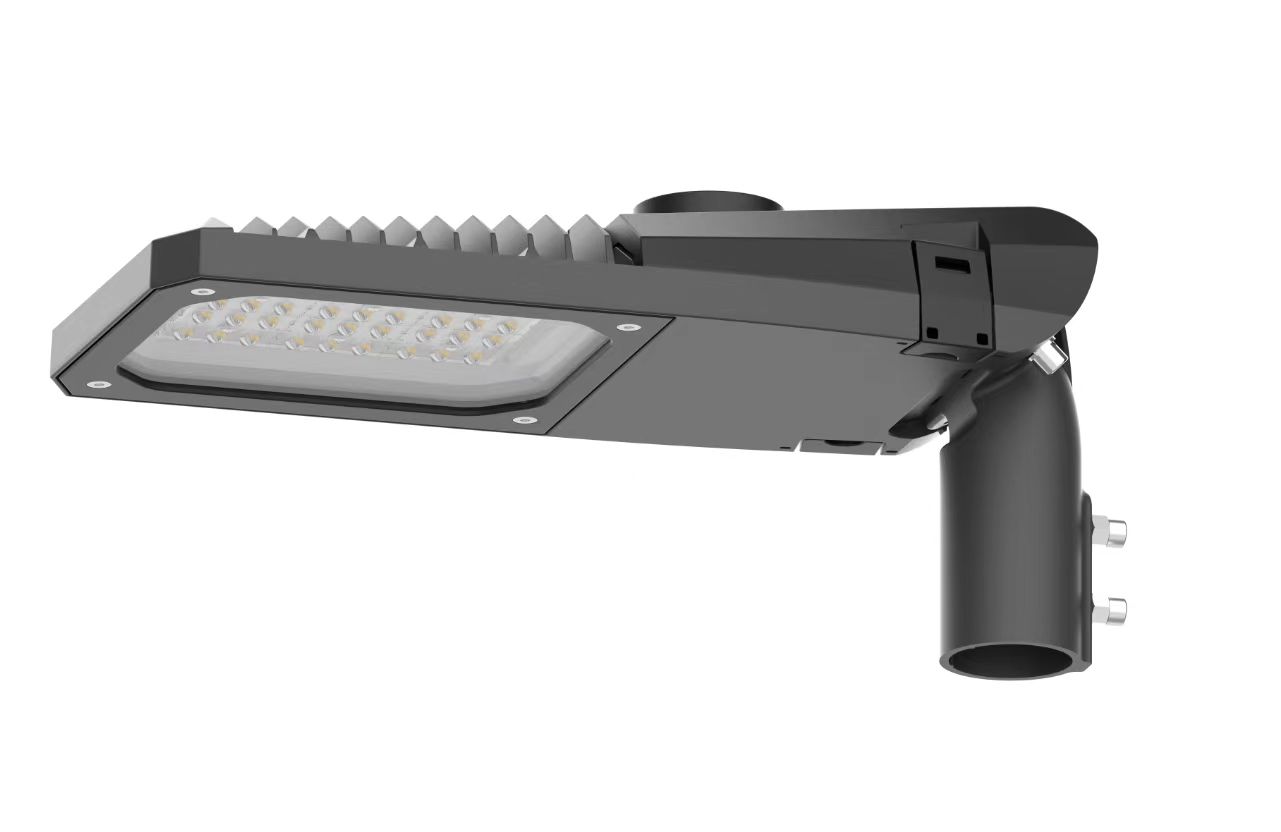

Horizontal and Vertical available adjustable angle-15°to+15° led street lighting.
The LED Street light housing manufacture from high pressure die-casting aluminum casing
| 型式コード | Housing Size mm | マッチパワー | Lamp Post （mm) | 重量（キロ） | アクセサリー |
| EK-LD13A | 492*183*97 | 30-50W | 60 | 2.4kg | Aluminum body tempered glass, Waterproof Rubber Ring，304 s/s screws, |
| EK-LD13B | 541*200*113 | 60-80W | 60 | 2.8kg | |
| EK-LD13C | 602*243*121 | 90-120W | 60 | 3.5kg | |
| EK-LD13D | 652*263*121 | 120-150W | 60 | 4.0kg | |
| EK-LD13E | 722*314*121 | 150-200W | 60 | 5.5kg | |
| EK-LD13F | 823*314*121 | 240-300W | 60 | 6.1kg | |
| Legend: Std = IP66 IK08 | |||||
| Housing Material ：Die-cast Aluminum + Armored Glass | |||||
| 作業温度 -35℃~50℃ 20%~90% HR | |||||
製品の特徴
- アルミニウムボディはADC12アルミニウムダイカスト製で、表面は腐食と色の持続を防ぐためにスプレー塗装で処理されています。
- Large area heatsinks fin design for fast theory in favor of the connection between cold and hot air, to keeping the good heat dissipation of lamps and increase the light whole life-time.
- ランプを完全に統一するための電源ボックス。
- 防塵＆滞留水を防ぐベンチレーション設計で、軽やかな長寿命を実現。
high-performance street lighting available in three sizes.
The LED Street lighting is manufactured from high pressure die-casting aluminum.
Led street light housing, Aluminum body street light
深セン EKI 照明工業株式会社。独自の設計・技術を駆使したアルミダイカスト製LEDライトハウジングのメーカーです。
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED High bay Heatsink, LED Downlight Empty Casting and so on.
LED街路灯ハウジングの特徴:
- 高い耐久性
- 高強度
- 最新のデザインが利用可能
