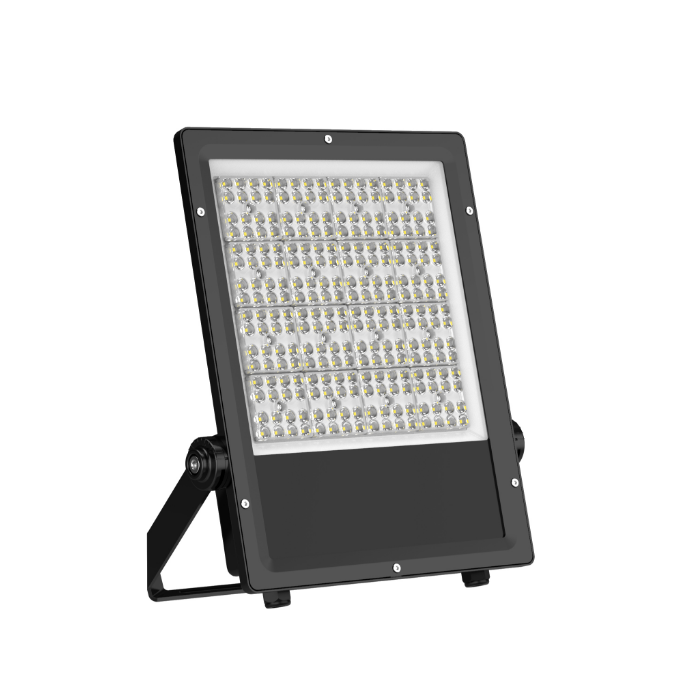

Waterproof Ip66 Aluminum housing flood light,
Industrial Project 50 100 150 200 300 400Watt Led Floodlight
仕様と寸法
| 商品番号。 | Housing Size(mm) | 提案力 | Net. Weight | アクセサリー |
| EK-FLH04-50w | 312*207*53 | 30-60w | 1.78kg | Heat sink Aluminum body, Glass, Bracket,304 screws, PCB, LENS. |
| EK-FLH04-75w | 312*258*53 | 70-80w | 2.1kg | |
| EK-FLH04-100w | 312*309*53 | 90-120w | 2.65kg | |
| EK-FLH04-150w | 362*309*53 | 150-180w | 3.38kg | |
| EK-FLH04-200w | 413*309*53 | 200-240w | 3.72kg | |
| EK-FLH04-300w | 437*411*61 | 300-320 | 5.8kg | |
| EK-FLH04-400w | 515*443*62 | 380-420w | 8.1kg |
Product's Features
Patented private mold, integrated die-cast aluminum shell, fashion and simple appearance.
Large heat dissipation area, good heat dissipation effect, long service life of lamps
High temperature resistant tempered glass, surface paint process, excellent corrosion resistance
High luminous efficiency up to 180lm/w.
Professional anti-glare full cut-off light distribution: luminous Angle 15°/30°/60°/90°/120° T2M/T3M/50*120 polarized light /30*90 polarized light is optional.
LED Street Light Floodlight die cast housing manufacture, EKI Lighting Industrial provide plentiful types unique, modern design and cost-effective LED Streetlight, LED Floodlight fixtures from 30w to240w 300w,
Mold design die casting service and LED streetlight components.

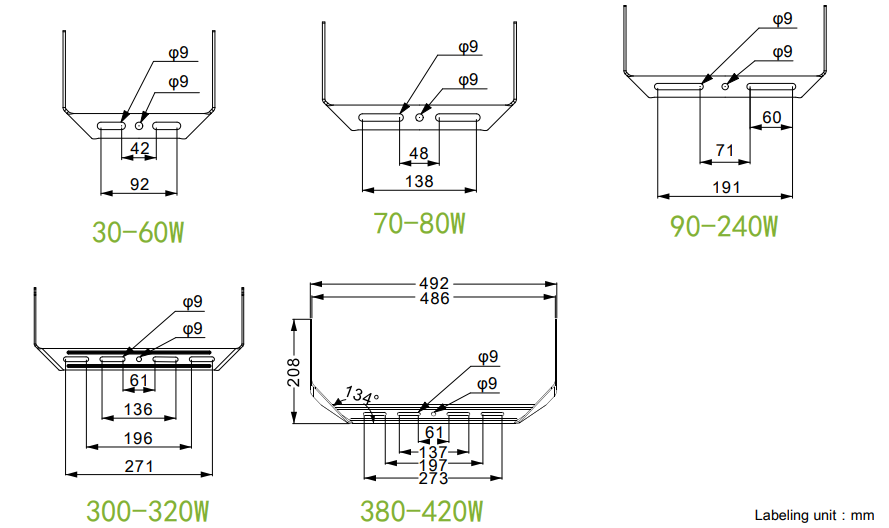

Support hole installation diagram.

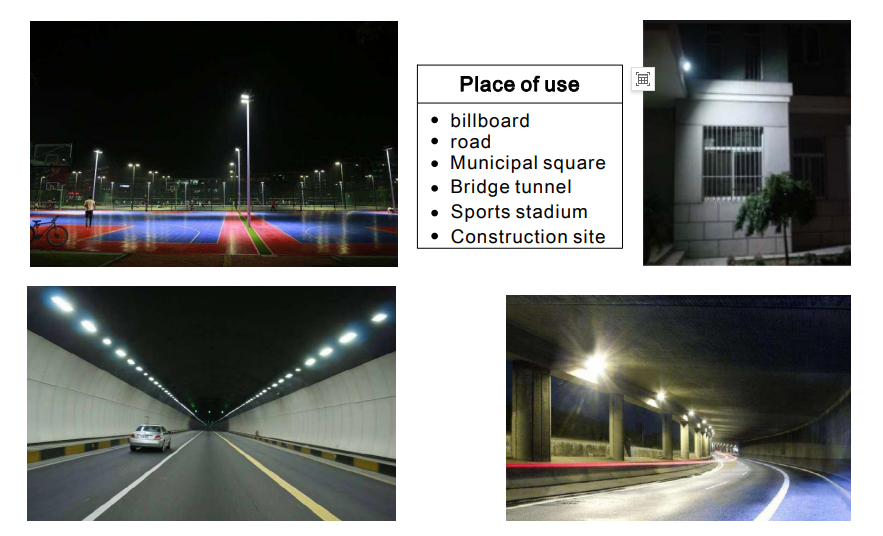

応用
Die casting OEM wholesale waterproof IP66 led garden light, led light, led urban light led street light housing manufactures
Die Cast Factory Workshop Show
